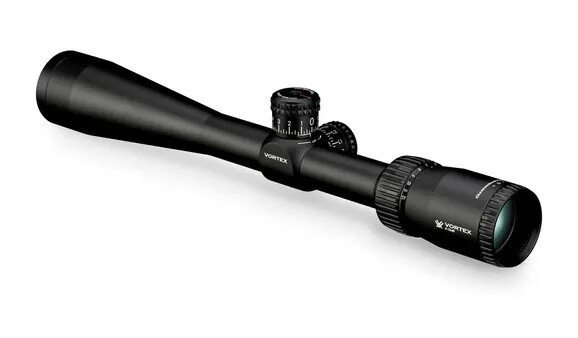

Vortex Optics - Diamondback® 6-24x50 FFP EBR-2C MRAD
The Diamondback® Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback® Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.
Objective Lens Diameter: | 50mm |
Magnification Range: | 6-24x |
Throw Lever Included: | Yes - Short |
Reticle: | EBR-2C (MRAD) |
Tube Diameter: | 30mm |
Reticle Focal Plane: | 1st |
Field of View Range(Linear): | 4.5ft - 18ft |
Eye Relief (Max): | 3.9 inches |
Overall Length: | 14.5 inches |
Weight: | 24.6 oz |
Turret Adjustment Value: | MRAD |
Total Elevation Travel: | 19 MRAD |
Total Windage Travel: | 19 MRAD |
Adjustment Value Per Click: | .1 MRAD |
Travel Per Revolution: |
6 MRAD |
Elevation Zero Stop: | No |
Parallax Range: | 10yds to Infinity |
Lens Material: | Achromatic XD Lenses |
Lens Coating: | Fully Multi-Coated |
Illumination: | No |
Illumination Color: | NA |
Body Material: | Aircraft Grade Aluminum |
Body Color: | Black |
Body Finish: | Matte |
Waterproof: | Yes |
Shockproof: | Yes |
Fogproof: | Yes
|
Lengths
L1 | L2 | L3 | L4 | L5 | L6 |
14.28 | 2.30 | 2.70 | 6.56 | 3.98 | 3.77 |
H1 | H2 |
2.25 | 1.73 |
